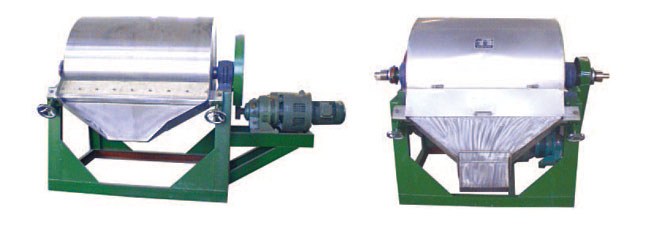

Flaker dryer


Works:Drum knot piece is a cooling crystallization process, the molten liquid feed tray and cooling drum contacts the drum surface film formation material through the membrane material and drum intramural heat, so that the material film cooling, crystals, crystal material film is scraped scraper, a sheet product.

By rotating drum drying drum type, heat conduction, will be attached to the outer wall of the drum or belt material liquid material in a continuous operation of heating and drying equipment.

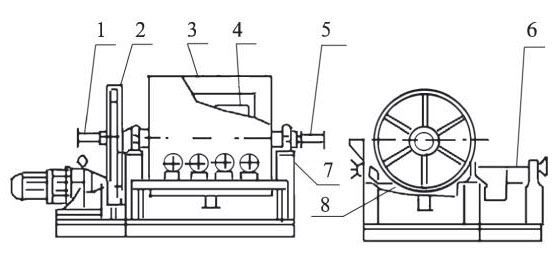

 Structure Introduction

  • 1, water inlet
  • 2, the driving part
  • 3, drum
  • 4, the cooling system
  • 5, the water system
  • 6, scraper system
  • 7, Rack
  • 8, trays




Features

The device's performance to the level of foreign

Has a side scraper, avoiding the drum side end product material

Equipment, compact structure, small footprint

Half-pipe jacket trays, safe and reliable

Atomization cooling, good cooling effect

Infinitely variable, drum speed adjustable

High precision drum

Adapt to a wide range of simple, flexible

Using multiple sets of blade, flexible adjustment

Versatile, can be dried either sheeting



Applications

1 ,knot piece

Polyethylene oligomers, petroleum resins, such as polyethylene oxide polymer products

Phthalic anhydride, maleic anhydride, naphthalene, peregal, higher fatty acid, trimer-methylpropane, guanidine nitrate, biphenol, isophthalic acid and other organic chemical products

Sodium sulphide, caustic soda, sodium hydrosulfide, calcium chloride and other inorganic chemical products

2, drying

Green sulfide, sulfide-yuan, dye slurry

Carbonate, sodium dihydrogen phosphate, inorganic materials such as magnesium chloride solution

Skim milk, milk and other food solution


Specifications and main parameters

Specifications

Drum Specifications

mm

Motor Power

KW

Heat shaft speed

r/min

Reference Dimensions(mm)

L

W

H

DZ-1

600×600

1.5~2

0.3~15

1400

1000

1200

DZ-2

800×1000

2.2~3

0.3~15

1800

1200

1400

DZ-4.5

1000×1200

4~5.5

0.3~11

2000

1400

1400

DZ-7.5

1200×1500

5.5~7.5

0.3~8

2400

1600

1600

DZ-9

1500×1800

7.5~11

0.3~7

2700

2000

2000

DZ-22

2000×3000

15~18.5

0.3~5

3900

2500

2600
